Code
from dataclasses import dataclass, field
from typing import List, Tuple, Dict, Optional, Iterable
import pandas as pd
import random
from collections import defaultdict
import matplotlib.pyplot as plt
import matplotlib.axes
import itertools
import numpy as np
from pprint import pprint
COLORS = {
"back": "white",
"front": "white",
"aisle": "white",
"io": "cornflowerblue",
"slot": "lightgray",
}
@dataclass
class NodeGrid:
"""Grid representation of a node in the warehouse."""
row: int
col: int
node_type: str # 'front', 'back', 'aisle', 'slot', 'io'
is_io: bool = False
def __post_init__(self) -> None:
"""Initialize the color based on the node type."""
if self.node_type in COLORS:
self.color = COLORS["io"] if self.is_io else COLORS[self.node_type]
else:
self.color = "white"
self.id = f"{self.node_type[0].upper()}{self.row}_{self.col}"
def __str__(self) -> str:
"""String representation of the node."""
return self.id
@dataclass
class Node:
"""Represents a location node in the warehouse."""
aisle: int
slot: int
node_type: str # 'front', 'back', or 'slot'
x_coord: float
y_coord: float
grid_coord: Tuple[int, int] = field(default_factory=tuple)
is_io: bool = False
@property
def id(self) -> str:
"""Generate a unique identifier for the node."""
if self.node_type == "front":
return f"F{self.aisle}"
elif self.node_type == "back":
return f"B{self.aisle}"
elif self.node_type == "slot":
return f"A{self.aisle}_{self.slot:02d}"
raise ValueError(f"Unknown node type: {self.node_type}")
@dataclass
class Item:
"""Represents an item in an order."""
sku: str
slot: str
@dataclass
class Order:
"""Represents a customer order."""
order_id: str
items: List[Item]
size: int # number of items
@dataclass

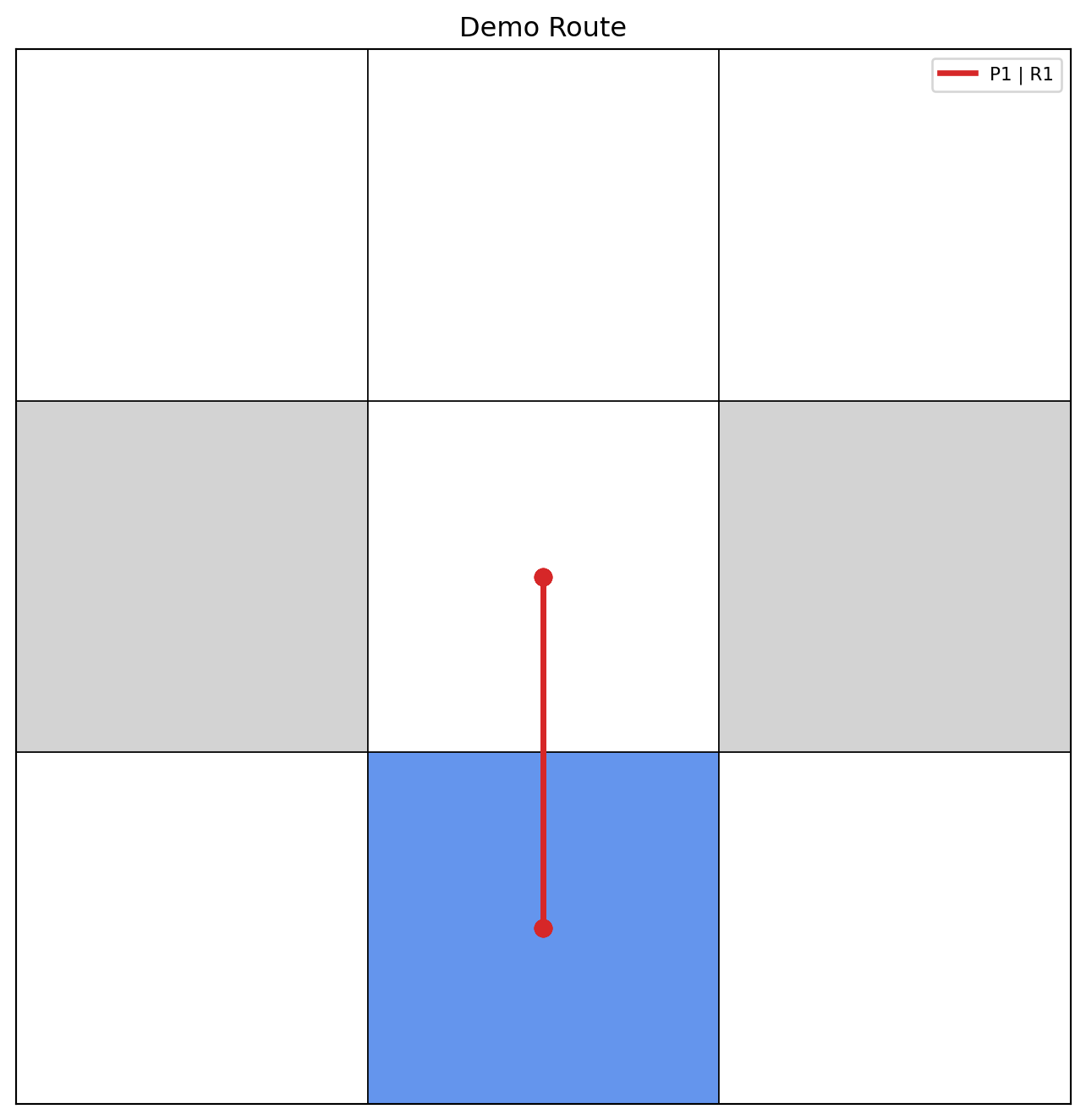

class Route:
"""Represents a picking route for a single picker."""
route_id: str
picker_id: str
orders: List[str]
path: List[str]
@dataclass
class Solution:
"""Container for a complete routing solution."""
routes: List[Route]
@dataclass
class Warehouse:
"""
Warehouse configuration and operations.
Parameters
----------
num_aisles : int
Number of parallel aisles in the warehouse.
slots_per_side : int
Number of storage locations per side of each aisle.
aisle_length_m : float
Length of each aisle in meters.
aisle_spacing_m : float
Spacing between aisles in meters.
slot_pitch_m : float
Pitch between slots in meters.
io_node : str
Identifier of the input/output node.
Attributes
----------
nodes : List[Node]
All nodes in the warehouse.
slot_nodes : List[Node]
Slot nodes.
front_nodes : List[Node]
Front cross-aisle nodes.
back_nodes : List[Node]
Back cross-aisle nodes.
adjacency_dict : Dict[str, List[str]]
Adjacency dictionary for the graph.
adjacency_matrix : pd.DataFrame
Adjacency matrix for the graph.
slot_dict : Dict[str, Node]
Dictionary of slot nodes by ID.
node_df : pd.DataFrame
DataFrame of all nodes.
grid : List[List[NodeGrid]]
Grid representation of the warehouse.
"""
num_aisles: int
slots_per_side: int
aisle_length_m: float
aisle_spacing_m: float
slot_pitch_m: float
io_node: str
nodes: List[Node] = field(default_factory=list, init=False, repr=False)
slot_nodes: List[Node] = field(default_factory=list, init=False, repr=False)
front_nodes: List[Node] = field(default_factory=list, init=False, repr=False)
back_nodes: List[Node] = field(default_factory=list, init=False, repr=False)
def __post_init__(self) -> None:
"""Initialize the warehouse nodes and related structures."""
self.generate_nodes()
self.adjacency_dict = self._create_adjacency_dict()
self.adjacency_matrix = self._create_adjacency_matrix()
self.slot_dict = {node.id: node for node in self.slot_nodes}
self.node_df = self._create_node_dataframe()
self.grid = self._create_node_grid()
self.grid_repr = self._create_grid_repr()
self.graph_repr = self._create_graph_repr()
def generate_nodes(self) -> None:
"""Generate all warehouse nodes (slots, front, and back cross-aisles)."""
# Create slot nodes
self.slot_nodes = [
Node(
aisle=aisle,
slot=slot_num,
node_type="slot",
x_coord=(aisle - 1) * self.aisle_spacing_m,
y_coord=slot_num * self.slot_pitch_m,
grid_coord=(aisle * 3 - 2, slot_num),
)
for aisle in range(1, self.num_aisles + 1)
for slot_num in range(1, self.slots_per_side + 1)
]
# Create front cross-aisle nodes
self.front_nodes = [
Node(
aisle=aisle,
slot=0,
node_type="front",
y_coord=0.0,
x_coord=(aisle - 1) * self.aisle_spacing_m,
is_io=(f"F{aisle}" == self.io_node),
grid_coord=(aisle * 3 - 2, 0),
)
for aisle in range(1, self.num_aisles + 1)
]
# Create back cross-aisle nodes
self.back_nodes = [
Node(
aisle=aisle,
slot=self.slots_per_side + 1,
node_type="back",
x_coord=(aisle - 1) * self.aisle_spacing_m,
y_coord=self.aisle_length_m,
is_io=(f"B{aisle}" == self.io_node),
grid_coord=(aisle * 3 - 2, self.slots_per_side + 1),
)
for aisle in range(1, self.num_aisles + 1)
]
# Combine all nodes
self.nodes = self.front_nodes + self.slot_nodes + self.back_nodes
# Node dict for quick lookup
self.node_dict: Dict[str, Node] = {node.id: node for node in self.nodes}
@property
def grid_height(self) -> int:
"""Calculate the height of the warehouse grid."""
return self.slots_per_side + 2
@property
def grid_width(self) -> int:
"""Calculate the total width of the warehouse in grid units."""
return self.num_aisles * 3
@property
def grid_dimensions(self) -> Tuple[int, int]:
"""Return the dimensions of the warehouse grid (rows, columns)."""
return self.grid_height, self.grid_width
@property
def grid_coord_io(self) -> Tuple[int, int]:
"""Get the grid coordinates of the I/O node."""
depot_col = int(self.io_node[1:]) * 3 - 2
depot_row = 0 if self.io_node.startswith("F") else self.grid_height - 1
return depot_row, depot_col
def _create_graph_repr(self, spacing: int = 6) -> str:
"""
Generate a textual representation of the warehouse layout with node IDs.
Parameters
----------
spacing : int, optional
Spacing for centering node IDs (default is 5).
Returns
-------
str
Textual representation of the warehouse layout.
"""
grid = [[" " for _ in range(self.grid_width)] for _ in range(self.grid_height)]
# Populate front cross aisle
for front_node in self.front_nodes:
col = (front_node.aisle - 1) * 3 + 1 # Middle column
grid[0][col] = f"{front_node.id}{'*' if front_node.is_io else ''}"
# Populate back cross aisle
for back_node in self.back_nodes:
col = (back_node.aisle - 1) * 3 + 1 # Middle column
grid[-1][col] = f"{back_node.id}{'*' if back_node.is_io else ''}"
# Populate aisle slots
for slot_node in self.slot_nodes:
col = (slot_node.aisle - 1) * 3 + 1 # Middle column
row = slot_node.slot
grid[row][col] = slot_node.id
return "\n".join("".join(f"{cell}".center(spacing) for cell in row) for row in grid)

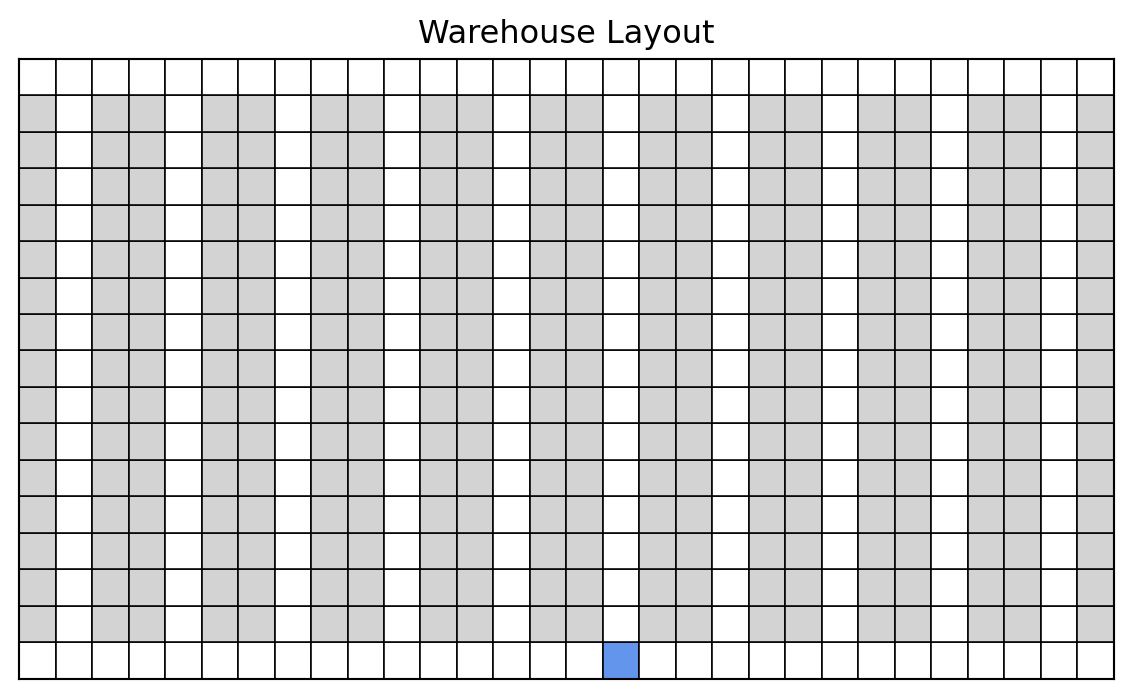

def _create_node_grid(self) -> List[List[NodeGrid]]:
"""
Generate a grid of NodeGrid objects representing the warehouse layout.
Returns
-------
List[List[NodeGrid]]
Grid of warehouse nodes.
"""
num_rows = self.grid_height
num_cols = self.grid_width
# Initialize grid
grid = [[" " for _ in range(num_cols)] for _ in range(num_rows)]
for row_idx in range(num_rows):
for col_idx in range(num_cols):
is_cross_aisle = row_idx == 0 or row_idx == num_rows - 1
is_shelf_column = col_idx % 3 != 1
if not is_cross_aisle and is_shelf_column:
grid[row_idx][col_idx] = NodeGrid(row_idx, col_idx, "slot")
elif is_cross_aisle and row_idx == num_rows - 1:
grid[row_idx][col_idx] = NodeGrid(row_idx, col_idx, "back")
elif is_cross_aisle and row_idx == 0:
grid[row_idx][col_idx] = NodeGrid(row_idx, col_idx, "front")
else:
grid[row_idx][col_idx] = NodeGrid(row_idx, col_idx, "aisle")
depot_row, depot_col = self.grid_coord_io
grid[depot_row][depot_col] = NodeGrid(depot_row, depot_col, "front", is_io=True)
return grid
def _create_grid_repr(self, show_coords: bool = False, spacing: int = 6) -> str:
"""
Generate a character-based grid representation of the warehouse layout.
Parameters
----------
show_coords : bool, optional
Whether to show coordinates (default is False).
spacing : int, optional
Spacing for centering cells (default is 3).
Returns
-------
str
Textual grid representation.
"""
num_rows, num_cols = self.grid_dimensions
grid = [[" " for _ in range(num_cols)] for _ in range(num_rows)]
for row_idx in range(num_rows):
for col_idx in range(num_cols):
grid[row_idx][col_idx] = str(self.grid[row_idx][col_idx])
if show_coords:
# Add row labels
for row_idx in range(num_rows):
grid[row_idx].insert(0, f"{row_idx}".center(spacing))
# Add column header row
col_header = [f"{col_idx}".center(spacing) for col_idx in range(num_cols)]
col_header.insert(0, "".center(spacing))
grid.insert(0, col_header)
return "\n".join("".join(f"{cell}".center(spacing) for cell in row) for row in grid)
def _create_node_dataframe(self) -> pd.DataFrame:
"""
Generate a DataFrame representation of the warehouse nodes.
Returns
-------
pd.DataFrame
DataFrame containing node information.
"""
return pd.DataFrame(
[
{
"id": node.id,
"aisle": node.aisle,
"slot": node.slot,
"type": node.node_type,
"x": node.x_coord,
"y": node.y_coord,
"is_io": node.is_io,
}
for node in self.nodes
]
)
def is_front_node(self, node_id: str) -> bool:
"""Check if a node is a front cross-aisle node."""
return node_id.startswith("F")
def is_back_node(self, node_id: str) -> bool:
"""Check if a node is a back cross-aisle node."""
return node_id.startswith("B")
def is_slot_node(self, node_id: str) -> bool:
"""Check if a node is a slot node."""
return node_id.startswith("A")
def parse_cross_node(self, node_id: str) -> Tuple[str, int]:
"""
Parse a cross-aisle node identifier (e.g., 'F1' -> ('F', 1)).
Parameters
----------
node_id : str
Node identifier.
Returns
-------
Tuple[str, int]
Type and aisle number.
"""
return node_id[0], int(node_id[1:])
def parse_slot_node(self, node_id: str) -> Tuple[str, int, int]:
"""
Parse a slot node identifier (e.g., 'A12_34' -> ('A', 12, 34)).
Parameters
----------
node_id : str
Node identifier.
Returns
-------
Tuple[str, int, int]
Type, aisle, slot.
"""
side = node_id[0]
aisle_str, slot_str = node_id[1:].split("_")
return side, int(aisle_str), int(slot_str)
def are_adjacent(self, node_u: str, node_v: str) -> bool:
"""
Determine if two nodes are adjacent in the warehouse graph.
Parameters
----------
node_u : str
First node ID.
node_v : str
Second node ID.
Returns
-------
bool
True if adjacent, False otherwise.
"""
# Cross-aisle to cross-aisle (same type)
if (self.is_front_node(node_u) and self.is_front_node(node_v)) or (
self.is_back_node(node_u) and self.is_back_node(node_v)
):
_, aisle_i = self.parse_cross_node(node_u)
_, aisle_j = self.parse_cross_node(node_v)
return abs(aisle_i - aisle_j) == 1
# Front to slot
if self.is_front_node(node_u) and self.is_slot_node(node_v):
_, aisle, slot_num = self.parse_slot_node(node_v)
return self.parse_cross_node(node_u)[1] == aisle and slot_num == 1
# Back to slot
if self.is_back_node(node_u) and self.is_slot_node(node_v):
_, aisle, slot_num = self.parse_slot_node(node_v)
return self.parse_cross_node(node_u)[1] == aisle and slot_num == self.slots_per_side
# Slot to cross-aisle (symmetric check)
if self.is_slot_node(node_u) and (self.is_front_node(node_v) or self.is_back_node(node_v)):
return self.are_adjacent(node_v, node_u)
# Slot to slot (same aisle, consecutive slots)
if self.is_slot_node(node_u) and self.is_slot_node(node_v):
_, aisle_u, slot_u = self.parse_slot_node(node_u)
_, aisle_v, slot_v = self.parse_slot_node(node_v)
return aisle_u == aisle_v and abs(slot_u - slot_v) == 1
return False
def _create_adjacency_dict(self) -> Dict[str, List[str]]:
"""
Create an adjacency dictionary for the warehouse graph.
Returns
-------
Dict[str, List[str]]
Adjacency dictionary.
"""
adj_dict = {}
node_ids = [node.id for node in self.nodes]
for node_u in node_ids:
adj_dict[node_u] = [
node_v for node_v in node_ids if node_u != node_v and self.are_adjacent(node_u, node_v)
]
return adj_dict
def _create_adjacency_matrix(self) -> pd.DataFrame:
"""
Create an adjacency matrix for the warehouse graph.
Returns
-------
pd.DataFrame
Adjacency matrix.
"""
node_ids = [node.id for node in self.nodes]
adj_matrix = pd.DataFrame(0, index=node_ids, columns=node_ids)
for i, node_u in enumerate(node_ids):
for j, node_v in enumerate(node_ids):
if i != j and self.are_adjacent(node_u, node_v):
adj_matrix.at[node_u, node_v] = 1
return adj_matrix
def calculate_step_cost(self, node_u: str, node_v: str) -> float:
"""
Calculate the cost of moving between two adjacent nodes.
Parameters
----------
node_u : str
Starting node ID.
node_v : str
Ending node ID.
Returns
-------
float
Step cost in meters.
Raises
------
ValueError
If nodes are not adjacent.
"""
if not self.are_adjacent(node_u, node_v):
raise ValueError(f"Nodes are not adjacent: {node_u} -> {node_v}")
# Cross-aisle to cross-aisle
if (self.is_front_node(node_u) and self.is_front_node(node_v)) or (
self.is_back_node(node_u) and self.is_back_node(node_v)
):
return self.aisle_spacing_m
# Front to slot or slot to front
if (self.is_front_node(node_u) and self.is_slot_node(node_v)) or (
self.is_slot_node(node_u) and self.is_front_node(node_v)
):
slot_num = (
self.parse_slot_node(node_v)[2]
if self.is_slot_node(node_v)
else self.parse_slot_node(node_u)[2]
)
return slot_num * self.slot_pitch_m
# Back to slot or slot to back
if (self.is_back_node(node_u) and self.is_slot_node(node_v)) or (
self.is_slot_node(node_u) and self.is_back_node(node_v)
):
slot_num = (
self.parse_slot_node(node_v)[2]
if self.is_slot_node(node_v)
else self.parse_slot_node(node_u)[2]
)
return abs(self.aisle_length_m - slot_num * self.slot_pitch_m)
# Slot to slot (same aisle)
return self.slot_pitch_m
def get_node_coordinates(self, node_id: str) -> Tuple[float, float]:
"""
Calculate the coordinates of a node in the warehouse.
Parameters
----------
node_id : str
Node identifier.
Returns
-------
Tuple[float, float]
(x, y) coordinates.
"""
if self.is_front_node(node_id) or self.is_back_node(node_id):
front_back, aisle = self.parse_cross_node(node_id)
y_coord = 0.0 if front_back == "F" else self.aisle_length_m
return (aisle - 1) * self.aisle_spacing_m, y_coord
_, aisle, slot_num = self.parse_slot_node(node_id)
return (aisle - 1) * self.aisle_spacing_m, slot_num * self.slot_pitch_m
def calculate_path_distance(self, path: List[str]) -> float:
"""
Calculate the total distance of a given path.
Parameters
----------
path : List[str]
List of node IDs in the path.
Returns
-------
float
Total distance in meters.
"""
return sum(self.calculate_step_cost(u, v) for u, v in zip(path, path[1:]))
def validate_path(self, path: List[str], required_slots: Iterable[str]) -> Tuple[bool, str]:
"""
Validate a picking path.
Parameters
----------
path : List[str]
List of node IDs in the path.
required_slots : Iterable[str]
Required slot nodes to visit.
Returns
-------
Tuple[bool, str]
(Valid, Message).
"""
if not path:
return False, "Empty path"
# Check start and end at I/O
if path[0] != self.io_node or path[-1] != self.io_node:
return False, "Path must start and end at I/O"
# Check adjacency
for u, v in zip(path, path[1:]):
if not self.are_adjacent(u, v):
return False, f"Non-adjacent step {u} -> {v}"
# Check required slots visited
needed_slots = set(required_slots)
visited_slots = set(node_id for node_id in path if self.is_slot_node(node_id))
if not needed_slots.issubset(visited_slots):
return False, f"Missing slots: {sorted(needed_slots - visited_slots)}"
return True, "OK"
def validate_solution(self, solution: Solution, orders: List[Order]) -> Tuple[bool, str]:
"""
Validate a complete solution.
Parameters
----------
solution : Solution
The solution to validate.
orders : List[Order]
List of orders.
Returns
-------
Tuple[bool, str]
(Valid, Message).
"""
orders_by_id = {order.order_id: order for order in orders}
assigned_orders = {order_id: False for order_id in orders_by_id}
for route in solution.routes:
# Find required slots for the route
required_slots = {
item.slot for order in orders
if order.order_id in route.orders
for item in order.items
}
is_valid, message = self.validate_path(route.path, required_slots)
if not is_valid:
return False, f"Route {route.route_id}: {message}"
for order_id in route.orders:
if assigned_orders[order_id]:
return False, f"Order {order_id} appears in multiple routes"
assigned_orders[order_id] = True
unassigned_orders = [order_id for order_id, assigned in assigned_orders.items() if not assigned]
if unassigned_orders:
return False, f"Unassigned orders: {unassigned_orders}"
return True, "OK"
def calculate_solution_distance(self, solution: Solution) -> float:
"""
Calculate total distance for all routes in solution.
Parameters
----------
solution : Solution
The solution.
Returns
-------
float
Total distance in meters.
"""
return sum(self.calculate_path_distance(route.path) for route in solution.routes)
def calculate_solution_travel_time(self, solution: Solution, speed_mps: float = 1.2) -> float:
"""
Calculate total travel time for all routes in solution.
Parameters
----------
solution : Solution
The solution.
speed_mps : float, optional
Walking speed in meters per second (default is 1.2).
Returns
-------
float
Total travel time in seconds.
"""
total_distance = self.calculate_solution_distance(solution)
return total_distance / speed_mps if speed_mps > 0 else 0.0
def calculate_route_time_seconds(
self,
route: Route,
orders: List[Order],
speed_mps: float = 1.2,
pick_time_sec: float = 3.0,
) -> float:
"""
Calculate travel time + pick handling time for a route.
Parameters
----------
route : Route
The route.
orders : List[Order]
List of all orders.
speed_mps : float, optional
Walking speed in m/s (default is 1.2).
pick_time_sec : float, optional
Time to pick one item in seconds (default is 3.0).
Returns
-------
float
Total time in seconds.
"""
distance = self.calculate_path_distance(route.path)
item_count = sum(order.size for order in orders if order.order_id in route.orders)
travel_time = distance / max(speed_mps, 1e-6)
handling_time = item_count * pick_time_sec
return travel_time + handling_time
def calculate_picker_finish_times(
self,
solution: Solution,
orders: List[Order],
speed_mps: float = 1.2,
pick_time_sec: float = 3.0,
) -> Dict[str, float]:
"""
Calculate finish time (seconds) per picker.
Parameters
----------
solution : Solution
The solution.
orders : List[Order]
List of orders.
speed_mps : float, optional
Walking speed in m/s (default is 1.2).
pick_time_sec : float, optional
Pick time per item in seconds (default is 3.0).
Returns
-------
Dict[str, float]
Finish times per picker ID.
"""
routes_per_picker = defaultdict(list)
for route in solution.routes:
routes_per_picker[route.picker_id].append(route)
finish_times = {}
for picker_id, routes in routes_per_picker.items():
total_time = sum(
self.calculate_route_time_seconds(route, orders, speed_mps, pick_time_sec)
for route in routes
)
finish_times[picker_id] = total_time
return finish_times
def calculate_solution_makespan(
self,
solution: Solution,
orders: List[Order],
speed_mps: float = 1.2,
pick_time_sec: float = 3.0,
) -> float:
"""
Calculate the maximum completion time among all pickers.
Parameters
----------
solution : Solution
The solution.
orders : List[Order]
List of orders.
speed_mps : float, optional
Walking speed in m/s (default is 1.2).
pick_time_sec : float, optional
Pick time per item in seconds (default is 3.0).
Returns
-------
float
Makespan in seconds.
"""
finish_times = self.calculate_picker_finish_times(solution, orders, speed_mps, pick_time_sec)
return max(finish_times.values()) if finish_times else 0.0
def get_all_slots(self) -> List[str]:
"""Get list of all slot node IDs."""
return [node.id for node in self.slot_nodes]
def generate_orders(
self, num_orders: int, max_items_per_order: int = 6, seed: Optional[int] = 42
) -> List[Order]:
"""
Generate random orders for testing.
Parameters
----------
num_orders : int
Number of orders to generate.
max_items_per_order : int, optional
Maximum items per order (default is 6).
seed : int, optional
Random seed for reproducibility (default is 42).
Returns
-------
List[Order]
Generated orders.
Examples
--------
>>> wh = Warehouse(...)
>>> orders = wh.generate_orders(5)
"""
rnd = random.Random(seed)
all_slots = self.get_all_slots()
orders = []
for order_num in range(1, num_orders + 1):
item_count = rnd.randint(1, max_items_per_order)
# Randomly sample unique slots for the order
chosen_slots = rnd.sample(
all_slots,
# Ensure we don't sample more slots than available
min(item_count, len(all_slots))
)
items = []
for item_idx, slot_id in enumerate(chosen_slots):
sku_id = f"S{order_num}_{item_idx+1}"
item = Item(sku=sku_id, slot=slot_id)
items.append(item)
order = Order(
order_id=f"O{order_num}",
items=items,
size=item_count,
)
orders.append(order)
return orders
def generate_solution(self, orders: List[Order], policy: callable, bin_size: int) -> Solution:
"""
Generate a solution using a specified routing policy.
Parameters
----------
orders : List[Order]
List of orders.
policy : callable
Policy method that takes orders, warehouse, and bin_size.
bin_size : int
Maximum number of items.
Returns
-------
Solution
Generated solution.
"""
return policy(orders, self, bin_size)
def _node_to_grid_coords(self, node_id: str) -> Tuple[int, int]:
"""
Convert a node ID to its corresponding grid coordinates in the warehouse.
Parameters
----------
node_id : str
The identifier of the node (e.g., 'F1', 'B2', 'A1_03').
Returns
-------
Tuple[int, int]
The grid coordinates (row, column) of the node.
Notes
-----
- Front nodes are located in the first row (row 0).
- Back nodes are located in the last row.
- Slot nodes are located in rows corresponding to their slot number.
- Columns are determined based on the aisle and node type.
"""
def _get_aisle_columns(aisle: int) -> Tuple[int, int, int]:
"""
Calculate the column indices for a given aisle.
Parameters
----------
aisle : int
The aisle number.
Returns
-------
Tuple[int, int, int]
The left, middle, and right column indices for the aisle.
"""
base_col = (aisle - 1) * 3
return base_col, base_col + 1, base_col + 2
# Get the total number of rows in the warehouse grid
num_rows, _ = self.grid_dimensions
# Handle front cross-aisle nodes
if self.is_front_node(node_id):
aisle = int(node_id[1:]) # Extract aisle number from node ID
_, mid_col, _ = _get_aisle_columns(aisle)
return 0, mid_col # Front nodes are in row 0
# Handle back cross-aisle nodes
if self.is_back_node(node_id):
aisle = int(node_id[1:]) # Extract aisle number from node ID
_, mid_col, _ = _get_aisle_columns(aisle)
return num_rows - 1, mid_col # Back nodes are in the last row
# Handle slot nodes
_, aisle, slot_num = self.parse_slot_node(node_id) # Parse slot node ID
_, mid_col, _ = _get_aisle_columns(aisle)
return slot_num, mid_col # Slot nodes are in rows corresponding to their slot number
def _plot_single_route(
self, ax: matplotlib.axes.Axes, color: str, route: Route
) -> None:
"""
Plots a single route on the warehouse grid.
Parameters
----------
self : Warehouse
The warehouse.
ax : matplotlib.axes.Axes
The axis.
color : str
Color for the route.
route : Route
The route.
"""
# Convert route nodes to grid points
grid_points = [self._node_to_grid_coords(node_id) for node_id in route.path]
# Center points
centered_points = [(col + 0.5, row + 0.5) for row, col in grid_points]
xs, ys = zip(*centered_points) if centered_points else ([], [])
# Label the route
label = f"{route.picker_id} | {route.route_id}"
# Plot the route as a line
ax.plot(xs, ys, linewidth=2.5, color=color, label=label)
ax.scatter(xs, ys, s=50, color=color)
def _draw_warehouse_grid(self, ax: matplotlib.axes.Axes,) -> None:
"""
Draws a grid representation of a warehouse layout on the given matplotlib axis.
Parameters
----------
self : Warehouse
The warehouse.
ax : matplotlib.axes.Axes
The axis to draw on.
"""
grid = self.grid
num_rows, num_cols = self.grid_dimensions
for row_idx in range(num_rows):
for col_idx in range(num_cols):
color = grid[row_idx][col_idx].color
rect = plt.Rectangle(
(col_idx, row_idx), 1, 1, fc=color, ec="black", lw=0.6
)
ax.add_patch(rect)
def plot_warehouse_layout(self, title: str = "Warehouse layout", figsize: Tuple[int, int] = (10, 9)) -> None:
"""
Visualize the warehouse layout.
Parameters
----------
self : Warehouse
The warehouse.
title : str, optional
Plot title (default is "Warehouse layout").
figsize : Tuple[int, int], optional
Figure size (default is (10, 9)).
"""
num_rows, num_cols = self.grid_dimensions
fig, ax = plt.subplots(figsize=figsize)
self._draw_warehouse_grid(ax)
ax.set_xlim(0, num_cols)
ax.set_ylim(0, num_rows)
ax.set_xticks([])
ax.set_yticks([])
ax.set_aspect("equal")
ax.set_title(title)
plt.tight_layout()
plt.show()
def plot_warehouse_routes(
self, solution: Solution, title: str = "Warehouse routes", figsize: Tuple[int, int] = (10, 9)
) -> None:
"""
Visualize warehouse routes for order picking.
Parameters
----------
self : Warehouse
The warehouse.
solution : Solution
The solution object containing the routes.
title : str, optional
Plot title (default is "Warehouse routes").
figsize : Tuple[int, int], optional
Figure size (default is (10, 9)).
"""
num_rows, num_cols = self.grid_dimensions
fig, ax = plt.subplots(figsize=figsize)
self._draw_warehouse_grid(ax)
if solution and solution.routes:
color_cycle = itertools.cycle(["tab:red", "tab:green", "tab:blue", "tab:orange", "tab:purple"])
for route in solution.routes:
self._plot_single_route(ax, next(color_cycle), route)
ax.set_xlim(0, num_cols)
ax.set_ylim(0, num_rows)
ax.set_xticks([])
ax.set_yticks([])
ax.set_aspect("equal")
ax.set_title(title)
ax.legend(loc="upper right", fontsize=8)
plt.tight_layout()
plt.show()
def policy_pick_and_return(orders: List[Order], warehouse: Warehouse, bin_size: int) -> Solution:
"""
Simple policy: pick all items one by one and return to I/O each time.
Parameters
----------
orders : List[Order]
List of orders.
warehouse : Warehouse
The warehouse.
bin_size : int
Maximum number of items (not used in this policy).
Returns
-------
Solution
Generated solution.
"""
all_items = [item for order in orders for item in order.items]
path = []
io_node = warehouse.node_dict[warehouse.io_node]
for item in all_items:
aisle = warehouse.node_dict[item.slot].aisle
slot_num = warehouse.node_dict[item.slot].slot
# Path from I/O to front of aisle
path_from_io_to_front = []
target_front = warehouse.node_dict[f"F{aisle}"]
if io_node.aisle > target_front.aisle:
for k in range(io_node.aisle, target_front.aisle - 1, -1):
path_from_io_to_front.append(warehouse.node_dict[f"F{k}"])
elif io_node.aisle < target_front.aisle:
for k in range(io_node.aisle, target_front.aisle + 1):
path_from_io_to_front.append(warehouse.node_dict[f"F{k}"])
else:
path_from_io_to_front.append(io_node)
# Path from front to slot
path_from_front_to_slot = []
for t in range(1, slot_num + 1):
path_from_front_to_slot.append(warehouse.node_dict[f"A{aisle}_{t:02d}"])
# Reverse path to return to front
path_from_slot_to_front = list(reversed(path_from_front_to_slot[:-1])) # Exclude slot
# Reverse path to return to I/O
path_from_front_to_io = list(reversed(path_from_io_to_front))
# Combine segments
path.extend(
path_from_io_to_front
+ path_from_front_to_slot
+ path_from_slot_to_front
+ path_from_front_to_io[:-1] # Exclude duplicate I/O
)
# Add final I/O
path.append(io_node)
# Convert to IDs
path_ids = [node.id for node in path]
return Solution(
routes=[
Route(
route_id="R1",
picker_id="P1",
orders=[order.order_id for order in orders],
path=path_ids,
)
]
)
def main() -> None:
"""Demonstrate warehouse functionality."""
simple_warehouse = Warehouse(
num_aisles=1,
slots_per_side=1,
aisle_length_m=1.0,
aisle_spacing_m=3.0,
slot_pitch_m=1.0,
io_node="F1",
)
print("Grid dimensions (rows, cols):", simple_warehouse.grid_dimensions)
print("\nGrid representation of warehouse:")
print(simple_warehouse.grid_repr)
print("\nWarehouse nodes DataFrame:")
print(simple_warehouse.node_df)
print("\nAdjacency matrix:")
print(simple_warehouse.adjacency_matrix)
print("\nAdjacency dictionary:")
pprint(simple_warehouse.adjacency_dict)
# Generate an order set using seed 1
orders = simple_warehouse.generate_orders(
num_orders=5, max_items_per_order=4, seed=1
)
print("\nGenerated orders:")
pprint(orders)
print("\nGraph representation of warehouse:")
print(simple_warehouse.graph_repr)
print(" \nSlot dict:")
pprint(simple_warehouse.slot_dict)
# Generate a demo route
solution = simple_warehouse.generate_solution(orders, policy=policy_pick_and_return, bin_size=1)
print("\nGenerated route path:")
pprint(solution)
# Validating the solution
is_valid, message = simple_warehouse.validate_solution(solution, orders)
print("Route valid?", is_valid, "-", message)
if is_valid:
print("\nSolution metrics:")
print(" distance (m):", simple_warehouse.calculate_solution_distance(solution))
print(" travel time (s):", simple_warehouse.calculate_solution_travel_time(solution, speed_mps=1.0))
print( " makespan (s):", simple_warehouse.calculate_solution_makespan(solution, orders, speed_mps=1.0, pick_time_sec=5.0),)
simple_warehouse.plot_warehouse_routes(solution, title="Demo Route", figsize=(8, 7))
if __name__ == "__main__":
main()Grid dimensions (rows, cols): (3, 3)
Grid representation of warehouse:
F0_0 F0_1 F0_2
S1_0 A1_1 S1_2
B2_0 B2_1 B2_2
Warehouse nodes DataFrame:
id aisle slot type x y is_io
0 F1 1 0 front 0.0 0.0 True
1 A1_01 1 1 slot 0.0 1.0 False
2 B1 1 2 back 0.0 1.0 False
Adjacency matrix:
F1 A1_01 B1
F1 0 1 0
A1_01 1 0 1
B1 0 1 0
Adjacency dictionary:
{'A1_01': ['F1', 'B1'], 'B1': ['A1_01'], 'F1': ['A1_01']}
Generated orders:
[Order(order_id='O1', items=[Item(sku='S1_1', slot='A1_01')], size=2),
Order(order_id='O2', items=[Item(sku='S2_1', slot='A1_01')], size=3),
Order(order_id='O3', items=[Item(sku='S3_1', slot='A1_01')], size=4),
Order(order_id='O4', items=[Item(sku='S4_1', slot='A1_01')], size=4),
Order(order_id='O5', items=[Item(sku='S5_1', slot='A1_01')], size=2)]
Graph representation of warehouse:
F1*
A1_01
B1
Slot dict:
{'A1_01': Node(aisle=1,
slot=1,
node_type='slot',
x_coord=0.0,
y_coord=1.0,
grid_coord=(1, 1),
is_io=False)}
Generated route path:
Solution(routes=[Route(route_id='R1',
picker_id='P1',
orders=['O1', 'O2', 'O3', 'O4', 'O5'],
path=['F1',
'A1_01',
'F1',
'A1_01',
'F1',
'A1_01',
'F1',
'A1_01',
'F1',
'A1_01',
'F1'])])
Route valid? True - OK
Solution metrics:
distance (m): 10.0
travel time (s): 10.0
makespan (s): 85.0
